Decription

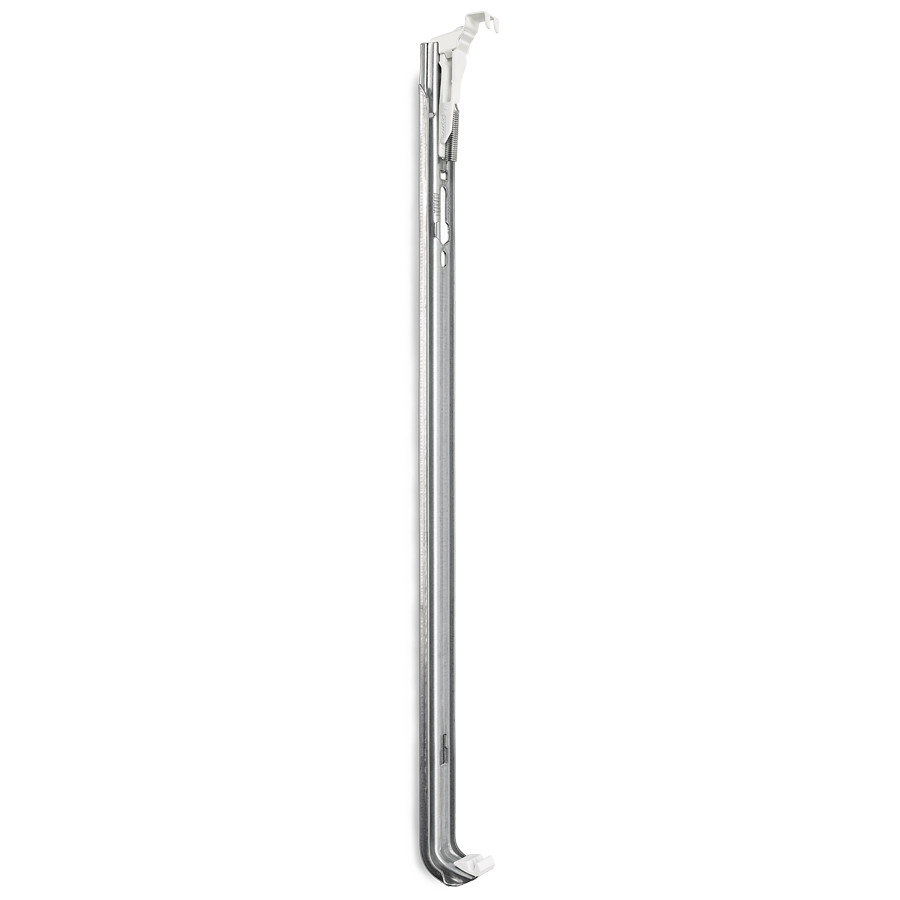

This bracket fits most radiator brands and radiator heights. It is mounted through the top grill and in the lower welding seam.
stability
MONCLAC demands no adjustments after installation, which is a big advantage both for the installer and the end user. The spring function makes the bracket follow the movements of the radiator at variations in temperature. This will prevent irritating noice to occur, and will prolong the life cycle of the product.
Grip measure in bracket upper part
The grip measure in the bracket upper part depends on the top grill design. The upper part is produced in many different design and sizes.
Wall distance
The wall distance is measured from the wall to the centre of the welding seam. We can produce the bracket in different wall distances, from 31,5 mm to 56 mm. Contact us regarding your requirements.
material
The bracket top part is made from galvanised sheet steel 1.25 mm in combination with fibreglass reinforced plastic. The bracket rail is made from galvanised sheet steel 1.5 mm, alternatively plain sheet steel 1.5 mm for powder coating. There is a plastic inlay in the bracket foot.
Package
The brackets can be packed in pallet/frames, boxes or in shrink pack together with screws, plugs or other accessories, everything according to customer requirements. All packaging material is recyclable. The package could be labeled according customer requirements.
Testing
MONCLAC wall bracket is tested and approved by TÜV (German testing institute). All our brackets are tested in accordance with the new German recommended standards VDI 6036. Test protocols can be provided when needed.
Customized
As all MONCLAC brackets are made to fit different radiator brands, contact us for information regarding your radiator, and ask for drawings and quotations.
